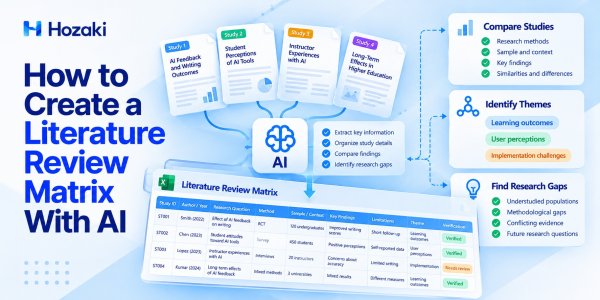

How to Create a Literature Review Matrix With AI

Reading research papers is only one part of writing a literature review. The harder task is comparing studies, identifying patterns, evaluating conflicting findings, and connecting evidence across multiple sources.

When researchers work with dozens of papers, important details can become scattered across notes, PDF annotations, and separate documents. It becomes difficult to remember which study used a particular method, which findings were statistically supported, or where a limitation was originally discussed.

A literature review matrix solves this organizational problem by placing research information into a structured table.

AI can make the process faster by helping extract study characteristics, organize evidence, identify potential themes, and compare findings. However, it can also misread papers, combine results from different studies, or suggest research gaps that are not supported by the available literature.

The best approach is to use AI to build a source-linked, verifiable literature review matrix, rather than treating AI-generated summaries as established research evidence.

This guide explains how to create a literature review matrix with AI, organize it in Excel, verify extracted findings, and turn the completed matrix into a useful foundation for academic writing.

Quick Answer: How to Create a Literature Review Matrix With AI

To create a literature review matrix with AI:

1. Define your research question and the scope of your literature review.

2. Select the papers you want to analyze.

3. Assign each study a unique reference ID.

4. Create matrix columns for study design, sample, methods, findings, limitations, and source evidence.

5. Use AI to extract information from each paper separately.

6. Verify the extracted details against the original papers.

7. Combine the verified records into an Excel or spreadsheet matrix.

8. Compare studies across common themes and methodological differences.

9. Identify patterns, contradictions, and possible research gaps.

10. Use the matrix to develop an evidence-based literature review outline.

The most important rule is simple: every meaningful finding in the matrix should be traceable to its original source.

What Is a Literature Review Matrix?

A literature review matrix is a structured table used to organize and compare information from multiple research publications.

Each row commonly represents a study, while each column records a particular characteristic or finding.

For example:

Study	Research Question	Method	Main Finding	Limitation
Study A	Question A	Survey	Finding A	Small sample
Study B	Question B	Experiment	Finding B	Short duration
Study C	Question C	Interviews	Finding C	Limited setting

This is an illustrative structure, not a summary of actual published studies.

The purpose is not simply to shorten each paper. A well-designed matrix helps researchers examine relationships between studies.

Summary Matrix vs. Comparison Matrix vs. Synthesis Matrix

These terms are sometimes used differently across institutions and research guides. In practice, they describe overlapping functions.

A summary matrix records important information about individual studies.

A comparison matrix makes it easier to examine differences in research design, participants, methods, and findings.

A synthesis matrix organizes evidence around themes or questions that span multiple studies.

For a serious literature review, a combined approach is often more useful than maintaining separate tables for every purpose.

Why Use AI to Build a Literature Review Matrix?

AI can assist with several repetitive parts of the process.

Extract Study Information

Given accessible source text, AI can help identify:

• Research objectives.

• Research questions or hypotheses.

• Study design.

• Participant characteristics.

• Data collection methods.

• Analytical approaches.

• Reported findings.

• Limitations.

However, not every paper reports these details clearly, and an AI system may misinterpret tables, appendices, or statistical results.

Standardize Different Terminology

Researchers may use different terms for similar concepts.

For example, studies might refer to "academic achievement," "learning outcomes," or "student performance."

AI can suggest a common theme, but researchers should not assume these terms represent identical measurements.

Compare Research Methods

AI can help organize studies by methodology, such as qualitative interviews, cross-sectional surveys, randomized experiments, or systematic reviews.

This can reveal differences in how evidence was collected.

Suggest Potential Themes

AI may identify recurring topics across papers.

These suggestions can help organize the review, but themes must be checked against the actual studies.

What AI Cannot Guarantee

AI cannot reliably guarantee that:

• Every relevant paper has been included.

• All extracted information is accurate.

• Studies use equivalent definitions or measurements.

• Conflicting findings have been interpreted correctly.

• A proposed research gap is genuinely absent from the wider literature.

AI should therefore support the researcher's analysis, not replace it.

Step 1: Define Your Research Question and Review Scope

Before creating a matrix, decide what the literature review is intended to answer.

A broad topic such as "AI in education" is usually too general for a useful evidence matrix.

A more focused question might be:

"How do AI-assisted feedback tools affect undergraduate writing outcomes?"

This question suggests several useful comparison dimensions:

• Educational setting.

• Participant population.

• Type of AI feedback.

• Study design.

• Outcome measures.

• Reported effects.

• Study limitations.

Define Inclusion Criteria

Decide which publications are relevant.

Possible criteria include:

• Publication period.

• Research population.

• Study design.

• Language.

• Subject area.

• Availability of relevant outcome data.

The criteria should follow the review's purpose rather than being chosen simply because particular papers are easy to access.

For systematic reviews, formal protocols and reporting requirements may apply. A basic literature matrix alone does not establish that a review meets systematic-review standards.

Prompt: Define Matrix Fields

I am preparing a literature review on the following research question:

[Insert research question]

Suggest a literature review matrix structure that will help compare relevant studies.

Include study characteristics, methodology, findings, limitations, and evidence-location fields.

Explain why each column is useful.

Do not invent studies or research findings.

Step 2: Collect Research Papers and Assign Study IDs

Gather the publications that meet your selection criteria.

Use a consistent naming system so each paper can be connected to its matrix record.

For example:

• ST001

• ST002

• ST003

Record the full citation, DOI or persistent URL, and the source file name.

A basic study register might contain:

Study ID	Citation	DOI / URL	File Name
ST001	Reference A	Source link A	ST001.pdf
ST002	Reference B	Source link B	ST002.pdf
ST003	Reference C	Source link C	ST003.pdf

The entries above are placeholders for demonstrating the structure.

Avoid Losing Source Identity

Do not rename files without updating the study register.

If a paper has multiple versions, record which version was analyzed.

This matters because a preprint and a later published article may differ.

Verify Bibliographic Information

Before using a paper in the matrix, check its title, authors, publication information, and identifier.

For a detailed workflow, see How to Verify Citations With AI Without Missing Fake or Misleading References.

If you still need to identify relevant publications, see How to Find Academic Papers With AI.

Step 3: Choose the Right Literature Review Matrix Columns

A matrix should contain enough information to support meaningful comparison without becoming an unmanageable collection of notes.

Recommended Core Columns

Column	Purpose
Study ID	Unique reference
Author / Year	Bibliographic identification
Research Question	What the study investigated
Study Design	How the research was structured
Sample / Context	Who or what was studied
Data Collection	How information was gathered
Key Findings	What the authors reported
Limitations	Constraints identified or supported by the study
Theme / Category	Relevant synthesis topic
Research Gap	Candidate unanswered question
Source Page / Section	Location of supporting evidence
Verification Status	Whether the extraction has been checked

Add Columns Based on Your Research Question

For quantitative research, you may need:

• Outcome measures.

• Effect sizes.

• Confidence intervals.

• Statistical significance.

• Follow-up duration.

For qualitative research, useful fields may include:

• Recruitment approach.

• Interview or observation methods.

• Analytical framework.

• Major themes.

• Researcher interpretation.

For mixed-methods studies, record both qualitative and quantitative components.

Avoid Overloading a Single Cell

Do not combine the sample, research method, results, and limitations into one long paragraph.

Separate fields make comparison and filtering easier.

Keep an Evidence Column

The Source Page / Section field is essential.

It allows a reviewer to locate the original passage supporting the extracted information.

If page numbers are unavailable or unreliable, record a section heading, table number, figure number, or another stable location.

Step 4: Extract Information From Each Paper With AI

The safest approach is to process papers individually before attempting cross-study synthesis.

This reduces the chance of mixing details from different publications.

Prepare the Source

Use a text-readable PDF or another reliable source format.

If the PDF is scanned, optical character recognition may be required.

For related document-processing guidance, see How to OCR a PDF and Make Scanned Documents Searchable.

Extract One Study at a Time

Provide the paper and request a structured record.

Use the following prompt:

Analyze the supplied research paper and extract information for a literature review matrix.

Return these fields:

• Study ID.

• Research objective.

• Research question or hypothesis.

• Study design.

• Sample and research setting.

• Data collection method.

• Analysis method.

• Key findings.

• Reported limitations.

• Relevant themes.

• Source page, section, table, or figure for each important finding.

Use only the supplied paper.

If a field is not reported, write "Not reported."

Do not infer sample sizes, statistical results, or conclusions.

Clearly separate the authors' findings from your interpretation.

Review the Extracted Record

Check the extracted information before adding it to the main matrix.

Pay particular attention to:

• Sample sizes.

• Group assignments.

• Study duration.

• Numerical results.

• Statistical comparisons.

• Limitations.

• Whether a finding belongs to the current study or a paper cited within it.

An AI model may accidentally attribute background literature to the paper being analyzed.

Step 5: Build the Literature Review Matrix in Excel

Excel is useful because it supports sorting, filtering, structured tables, and manual corrections.

Create the Main Worksheet

Name the worksheet:

Literature Matrix

Add the selected column headings.

Place one study per row.

Avoid merging cells in the main data table because merged cells can complicate sorting and filtering.

Convert the Range Into a Table

In Excel:

1. Select the populated data range.

2. Choose Insert → Table.

3. Confirm that the table has headers.

4. Apply filters to the relevant columns.

This allows studies to be filtered by research design, population, theme, or verification status.

Use Consistent Labels

For example, use standardized study-design categories such as:

• Randomized experiment.

• Nonrandomized intervention.

• Cross-sectional survey.

• Longitudinal study.

• Qualitative interviews.

• Mixed methods.

These are examples, not an exhaustive taxonomy.

When a paper uses a more specific design, preserve that information in an additional notes field rather than forcing it into an inaccurate category.

Add a Verification Status

Useful values include:

• Not checked.

• Needs review.

• Verified.

• Corrected.

• Insufficient source evidence.

A verified status should mean that the relevant source details have actually been checked.

Keep the Original Extraction

If you correct an AI-generated entry, consider retaining the original output or a change note.

This creates a record of what was changed and why.

Step 6: Compare Studies Across Important Dimensions

Once the individual records have been verified, begin comparing studies.

Compare Research Designs

Ask:

• Which studies used experiments?

• Which relied on surveys or interviews?

• Were findings based on observational or intervention data?

• Were the outcome measures comparable?

A difference in research design may help explain why findings appear inconsistent.

Compare Populations and Contexts

Check whether studies examined similar participants and settings.

For example, evidence from university students may not transfer directly to primary-school classrooms.

Compare Outcome Measures

Two studies may both discuss "learning improvement" while measuring different outcomes.

One might examine test scores, while another measures self-reported confidence.

These findings should not be treated as interchangeable.

Compare Findings and Limitations

Record:

• Findings that appear consistent.

• Findings that conflict.

• Differences in methods.

• Differences in populations.

• Limitations that affect interpretation.

Prompt: Cross-Study Comparison

Compare the verified literature matrix records I provide.

Identify similarities and differences in study design, population, outcome measures, and reported findings.

Group studies only when their concepts are sufficiently comparable.

Explain important methodological differences.

Do not assume that studies with similar keywords measured the same construct.

Reference the Study ID for every comparison.

Step 7: Turn the Matrix Into a Research Synthesis

A literature review should do more than describe one study after another.

Synthesis involves connecting evidence across publications to answer a broader question.

Move From Study-by-Study Summaries to Themes

Instead of writing:

"Study A found X. Study B found Y. Study C found Z."

Organize the evidence around questions such as:

• Under what conditions do studies report positive outcomes?

• Which methods produce different findings?

• Are results consistent across populations?

• What limitations recur across the literature?

Create a Theme Synthesis Worksheet

A second worksheet can contain:

Theme	Supporting Studies	Conflicting Evidence	Methodological Notes	Remaining Questions
Theme A	ST001, ST003	ST005	Different outcome measures	Need comparable measures
Theme B	ST002, ST004	None identified in this set	Small samples	Need larger studies

The study IDs and themes above are illustrative.

Avoid Counting Studies as Votes

If five studies report a positive association and two report no association, that does not automatically establish a positive overall effect.

Studies may differ in quality, sample size, design, measurement, and statistical precision.

A literature matrix supports structured comparison, but it is not a substitute for formal evidence synthesis or meta-analysis when those methods are required.

Prompt: Identify Themes

Using only the verified literature matrix, identify recurring research themes.

For each theme, list supporting Study IDs, conflicting findings, relevant methodological differences, and limitations.

Distinguish evidence directly reported by the studies from your proposed synthesis.

Do not calculate pooled effects or make causal conclusions unless the data and study designs justify them.

Step 8: Identify Potential Research Gaps With AI

A research gap is an important question that remains insufficiently addressed by existing evidence.

However, a gap cannot be established simply because a topic is missing from a small collection of papers.

Types of Potential Gaps

A matrix may reveal possible:

• Population gaps.

• Geographic gaps.

• Methodological gaps.

• Measurement gaps.

• Long-term follow-up gaps.

• Conflicting evidence.

• Theoretical gaps.

For example, if the collected studies focus on university students, the matrix may suggest investigating other educational settings.

But this does not prove that no studies exist in those settings.

Verify Candidate Gaps

Before presenting a gap as established:

1. Describe the gap precisely.

2. Identify which studies in the matrix suggest it.

3. Search for additional relevant literature.

4. Check whether newer or overlooked studies address the question.

5. Revise the gap statement to reflect the actual evidence.

Prompt: Research Gap Analysis

Review this verified literature matrix and propose potential research gaps.

For each gap, explain:

• Which studies suggest it.

• What evidence appears limited or inconsistent.

• Whether the gap concerns population, method, measurement, context, or theory.

• What additional literature searches are needed.

Label every proposed gap as provisional.

Do not claim that no research exists unless a sufficiently comprehensive search supports that conclusion.

Step 9: Practical Literature Review Matrix Example

Consider a fictional research project examining AI-assisted feedback in higher education.

The following examples are deliberately synthetic. They do not describe actual published studies.

Example Study Records

Study ID	Design	Sample / Context	Illustrative Finding	Limitation
ST001	Randomized experiment	Undergraduate writing course	Improvement in a specified writing score	Short follow-up
ST002	Cross-sectional survey	University students	Positive attitudes toward AI feedback	Self-reported outcomes
ST003	Qualitative interviews	University instructors	Concerns about feedback accuracy	Limited institutional context
ST004	Mixed methods	Undergraduate writing classes	Mixed results across writing tasks	Different outcome measures

Identify the Differences

The studies address related topics but provide different kinds of evidence.

ST001 examines an intervention outcome.

ST002 measures perceptions rather than demonstrated writing improvement.

ST003 explores instructor experiences.

ST004 combines multiple forms of evidence.

It would be inappropriate to treat all four findings as equivalent evidence that AI improves writing performance.

Build a Theme-Based Synthesis

A preliminary synthesis might identify:

Theme 1: Learning outcomes

ST001 and ST004 address writing outcomes, but their measures and designs differ.

Theme 2: User perceptions

ST002 provides information about student attitudes, not direct evidence of improved performance.

Theme 3: Implementation concerns

ST003 highlights questions about feedback reliability and instructional use.

Identify a Candidate Research Question

The matrix may suggest asking:

"How does the accuracy of AI-generated feedback affect measurable writing outcomes over longer periods?"

This is a provisional research direction, not a confirmed gap in the wider literature.

A real literature review would require additional source searches and evidence evaluation.

Step 10: Verify the Completed Literature Review Matrix

AI-assisted extraction should be checked systematically.

Verify Bibliographic Identity

Confirm that every Study ID corresponds to the intended publication.

Check author names, titles, publication dates, and identifiers.

Verify Study Characteristics

Confirm:

• Study design.

• Participant numbers.

• Research setting.

• Data collection methods.

• Outcome measures.

Verify Important Findings

Compare extracted results against the original text, tables, and figures.

Do not rely solely on AI-generated summaries.

Check Numerical Results

When studies report numerical findings, verify the exact values and relevant qualifications.

Pay attention to:

• Group sizes.

• Means and percentages.

• Effect estimates.

• Confidence intervals.

• Statistical significance.

• Missing data.

Verify Synthesis Statements

Every cross-study conclusion should identify the studies that support it.

A synthesis statement should not imply stronger agreement than the evidence provides.

Keep an Audit Trail

Record:

Field	Example
Study ID	ST001
Matrix Field	Key Findings
Source Location	Results section
Verification Status	Verified
Reviewer Note	Checked against source table

This makes the matrix easier to review, correct, and update.

Reusable AI Prompts for Literature Review Matrices

Prompt 1: Extract a Study

Extract study design, sample, methods, outcomes, findings, and limitations from the supplied paper.

Include source locations.

Do not infer missing details.

Prompt 2: Standardize Matrix Entries

Review these study records for inconsistent labels and formatting.

Suggest standardized terminology while preserving the original meaning.

Do not merge concepts that are not equivalent.

Prompt 3: Compare Studies

Compare the verified studies by population, research design, outcome measures, and findings.

Reference Study IDs and identify methodological differences.

Prompt 4: Generate a Synthesis

Organize the verified matrix into research themes.

For each theme, summarize supporting evidence, conflicting findings, and important limitations.

Do not overstate consensus.

Prompt 5: Audit the Matrix

Identify entries that lack source evidence, contain inconsistent data, or make unsupported interpretations.

Return a correction checklist.

Do not mark unresolved fields as verified.

Common Mistakes When Creating a Literature Review Matrix With AI

Mistake 1: Treating AI Summaries as Verified Findings

AI-generated summaries may omit qualifications or misinterpret results.

Better approach: Check important findings against the original paper.

Mistake 2: Combining Information From Different Studies

An AI assistant may attribute one paper's results to another.

Better approach: Extract papers individually and preserve Study IDs.

Mistake 3: Using Inconsistent Matrix Columns

Different fields make comparison difficult.

Better approach: Define a consistent structure before extraction.

Mistake 4: Recording Findings Without Source Locations

A finding that cannot be traced is difficult to verify.

Better approach: Record page, section, table, or figure references.

Mistake 5: Treating Similar Keywords as Equivalent Concepts

Studies may use similar language while measuring different outcomes.

Better approach: Compare definitions and measurement methods.

Mistake 6: Declaring Research Gaps Too Early

A limited set of papers cannot establish the absence of research across an entire field.

Better approach: Verify candidate gaps through additional literature searches.

Mistake 7: Writing the Review as a List of Summaries

A literature review should analyze relationships between studies.

Better approach: Organize the final writing around themes, contradictions, and methodological differences.

Frequently Asked Questions

Can ChatGPT create a literature review matrix?

Yes. ChatGPT can help extract information, organize study records, compare research methods, and suggest synthesis themes when suitable source material is provided. Its output should be checked against the original publications.

What columns should a literature review matrix include?

Common columns include author and year, research question, study design, sample, methods, key findings, limitations, themes, source locations, and verification status. The exact structure depends on the review question.

Is Excel suitable for a literature review matrix?

Yes. Excel supports structured tables, sorting, filtering, and manual corrections. For larger projects, researchers may also use reference managers or specialized review software.

Can AI identify research gaps from a literature matrix?

AI can suggest candidate gaps based on the available studies. A broader literature search is needed before claiming that a research gap genuinely exists.

What is the difference between a literature matrix and a literature review?

A literature matrix is an organizational and analytical tool. A literature review is a written synthesis that evaluates and connects research evidence.

Should I include page numbers in a literature review matrix?

Where possible, record page numbers or another reliable source location for important findings. This makes verification and later citation easier.

Can I use NotebookLM to build a literature review matrix?

NotebookLM can help explore uploaded sources and locate relevant information. You can then transfer verified findings into a structured matrix. See How to Use NotebookLM for Research for a related workflow.

Conclusion: Build a Literature Matrix That Supports Real Research Synthesis

A literature review matrix is more than a table of paper summaries.

When designed carefully, it helps researchers compare study designs, understand differences in evidence, identify recurring themes, and develop more defensible research questions.

AI can accelerate information extraction and organization, but the final matrix must remain grounded in original sources.

The most reliable workflow is:

Define the review question → Collect studies → Extract information → Verify evidence → Build the matrix → Compare findings → Develop a synthesis.

The result is not simply a faster literature review process. It is a clearer, more traceable foundation for academic research and writing.
